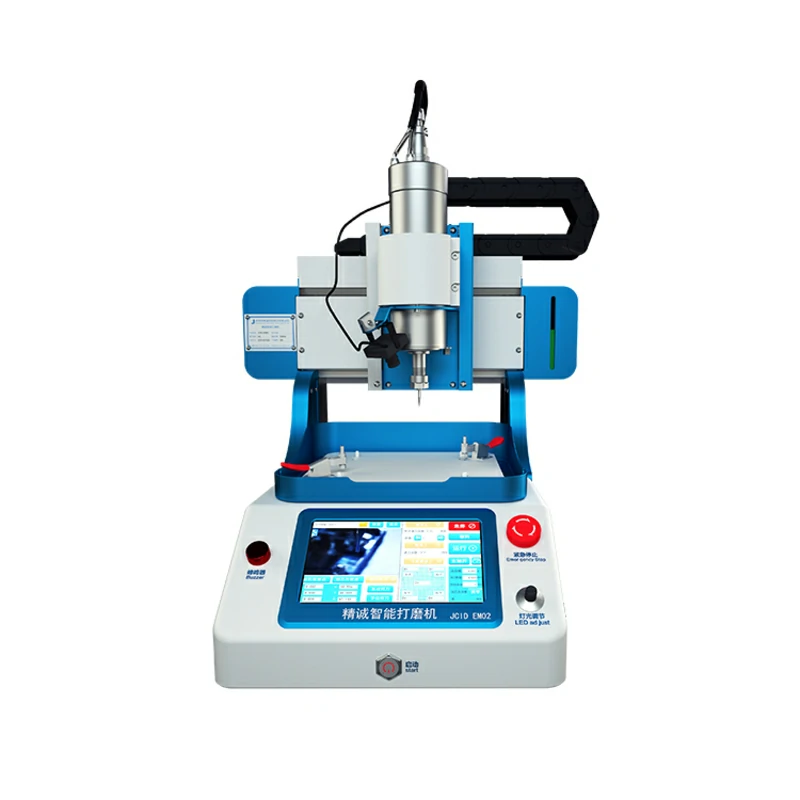

EM02 CNC Grinding Machine Polisher for IC Chip and CPU Sanding- JCID

Market Price: US $2240/PC

• Matching with high precision moulds for CPU grinding, nand/hard disk grinding, touch IC grinding and PMU bracket grinding

• High quality water-cooling spindle, 24000r/min, 200W strong power, scientific ratio speed

• 720P HD camera with 180 degree rotation and adjustable focus, ultra wide horizon, clear at a glance

• Inside precise sensor, detect chip flatness automatically, analyze and generate curved surface grinding

• Automatic grinding app data upgrade by Wifi networking, newly added batch grinding and PMU bracket grinding App, more Apps will launch soon

• Support data import through USB flash disk, support operating by connecting with external mouse and keyboard

• Integrated design of screen and host, save space and more convenient to use

• 7 inch HD capacity touch screen, sensitive operation, heat resistance and long service life

• Three axis adopts imported ball screw and linear guide, machining accuracy is not less than 0.01

Video Instruction
Inquiry Now




Product Name

JCID Intelligent CNC Grinding Machine 2nd Gen-EM02





Operating System

Self-developed operating system

Effective Stroke


Machining accuracy


Chuck Size


Spindle Power


Working Voltage


Template Size


Product Dimension


Net Weight


Auxiliary perspective

720P HD Camera



JCID EM02 grinding machine is specially designed for BGA chip manufacturer. It's suitable for CPU polish, IC chip grinding, nand grinding and PMU bracket grinding. It features 720P HD camera, 7 inch capacitive screen for operation, auto chip flatness detection, imported high precision linear guide, water-cooling circulation system, free function Apps and auto data upgrading through WiFi networking. The self-developed operating system is convenient for system upgrade and data update. It's a must have desktop repair tool for mobile phone and chip IC maintenance.

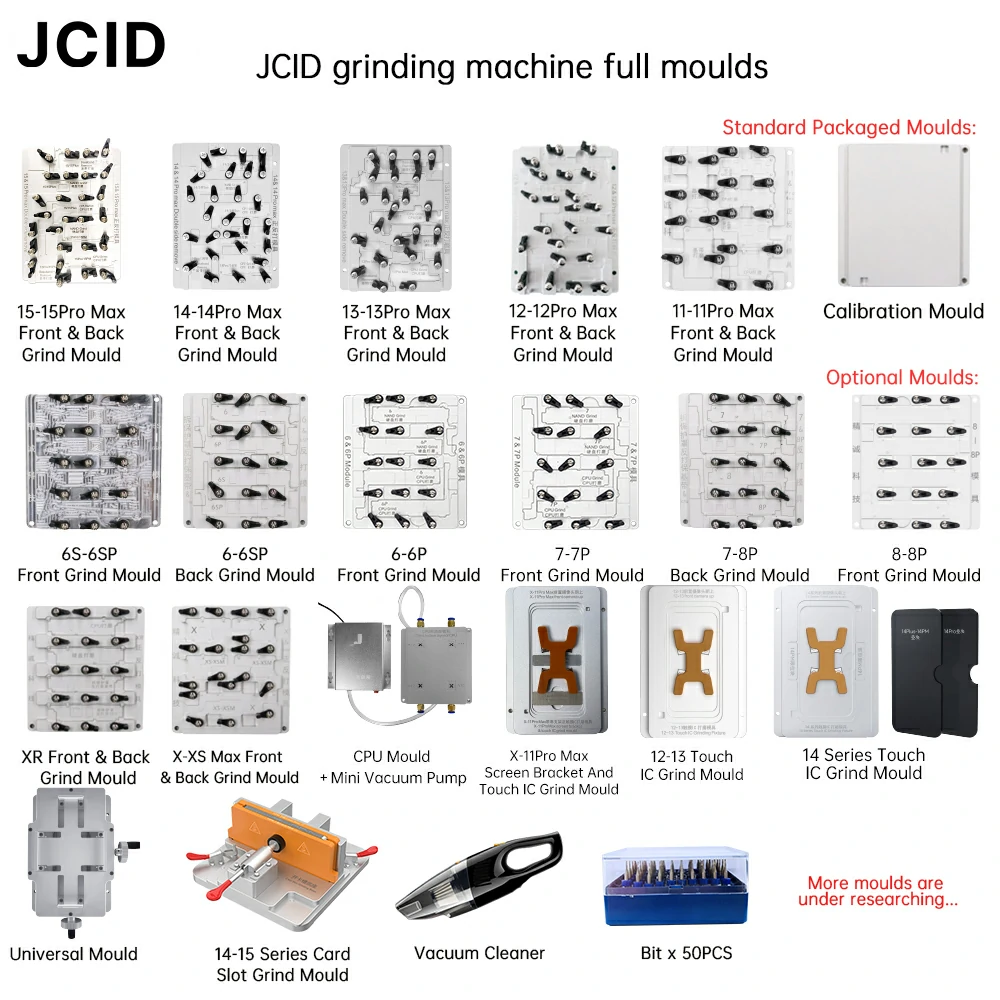

List of Packing:

JCID EM02 CNC grinding machine*1

Wrench*2 (13-15mm*1, 14-17mm*1)


Calibration mould*1

8-8P front grind mould*1

XR front&back grind mould*1

X-XS Max front&back grind mould*1

11-11Pro Max front&back grind mould*1

12-12Pro Max front&back grind mould*1


Package Details:

1PC / Carton

Carton Dimension: 60*45*74cm
